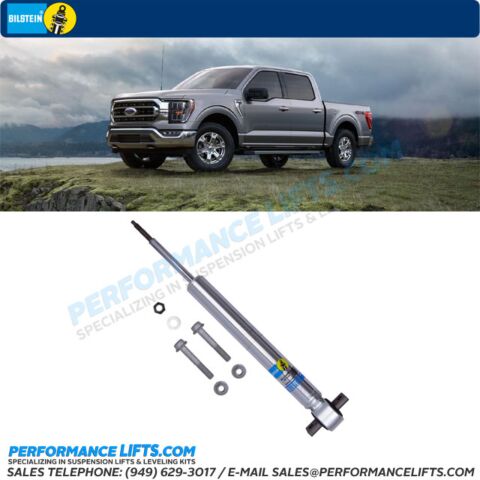

This Bilstein shock part # 24-323680 is designed for use on the front suspension of 2021+ Ford F150 4x4 trucks equipped with the "standard" suspension. What does standard suspension mean? Well if your F150 has the Continuously Controlled Damping package this Bilstein shock will NOT fit. If you have a Raptor... this shock will NOT fit. Bilstein designs this shock to provide a stock height setting (groove 1) all the way up to approximately 2.5" inches of lift over stock height on the 6th groove.

Bilstein B8 5100 series Ride Height Adjustable shock absorbers feature multiple snap-ring grooves machined into the body that allow for different spring seat positions, providing 0-2.5 inches of front lift with OE springs (depending on application). The MonoTube shock absorbers feature a 46mm digressive piston with a self-adjusting deflective disc valve. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling over the stock shocks they are designed to replace. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is one of the best ways to level out your 2021+ Ford F150 4x4.

Approximate Lift Height:

Groove 1 = Stock Height
Groove 2 = +0.5" Lift
Groove 3 = +1.0" Lift
Groove 4 = +1.5" Lift
Groove 5 = +2.0" Lift
Groove 6 = +2.5" Lift

Please Read:

This Bilstein shock is sold individually. You must transfer the factory upper mount, lower spring seat, spring seat isolator and the factory coil spring over to the Bilstein shock body. We HIGHLY recommend getting the truck re-aligned after this shock has been installed at any setting other than the stock height.

For more information on this or any other Bilstein product please click on the Ask A Question link located at the very top of this page.
