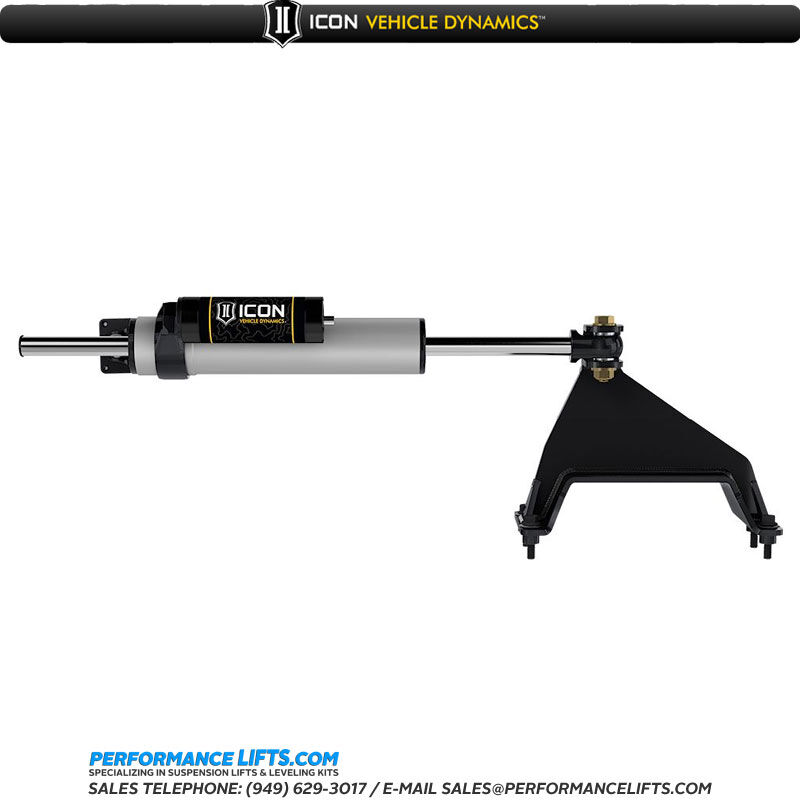

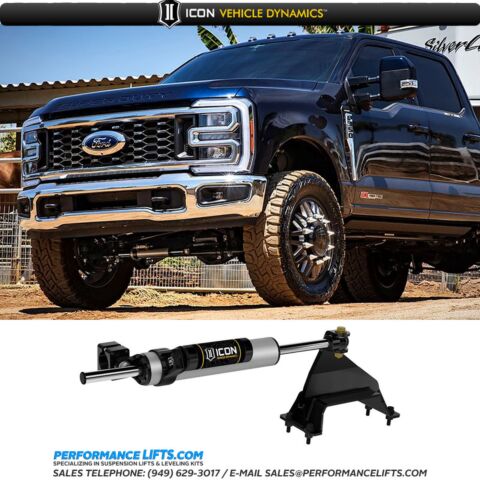

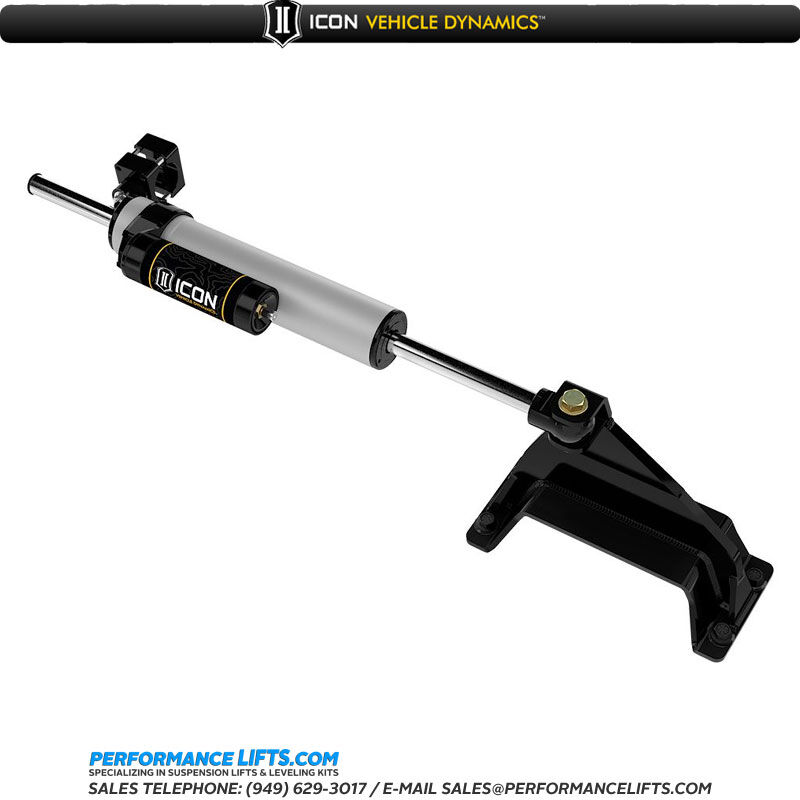

ICON Centerline Steering Stabilizer Kit # 65053 is designed for use on 2023 and newer Ford F250 SuperDuty 4x4 and F350 SuperDuty 4x4 trucks. Please note that this kit is NOT designed for use on aftermarket tie rods. Your SuperDuty must have a factory FORD tie rod installed for this kit to fit properly. The ICON stabilizer provides a significant increase in steering damping compared to the stock cylinder and provides a much improved driving experience on trucks with both stock size and oversize aftermarket wheels and tires. The ICON kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8” chrome plated induction-hardened steel shaft.. FK Rod End bearings provide precise function & feel throughout steering range. A piggyback reservoir provides increased fluid capacity for better heat dissipation under hard use.

Installation:
Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.

ICON # 65053 Features:
• Large bore 2.5" diameter shock body with piggyback reservoir
• Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
• Provides symmetrical steering feel throughout input range
• Drastically increased steering damping over stock unit
• 100% bolt-on installation
• Offers increased wheel travel compared to ICON's dual steering stabilizer kit
• Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
• 6061 hard anodized aluminum shock body provides excellent corrosion resistance
• 7/8” chrome plated induction-hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range
• FK Rod End bearings for precise function & feel throughout steering range

IMPORTANT FITMENT NOTES:
• After installation, cycle steering left and right to ensure full range of steering is achievable and stabilizer is installed correctly.
• If using a non-ICON configuration, cycle the suspension to verify that the stabilizer does not make contact upon full compression.
• Mounts over stock front differential cover, not compatible with most aftermarket covers.
• Not compatible with aftermarket tie rods.
• Only compatible with 4x4 models.

For more information on this or any other ICON Vehicle Dynamics product please click on the Ask A Question link located at the very top of this page.
