CST 2009-2012 Ram 3500 2wd 6" Lift # CSK-D12-2

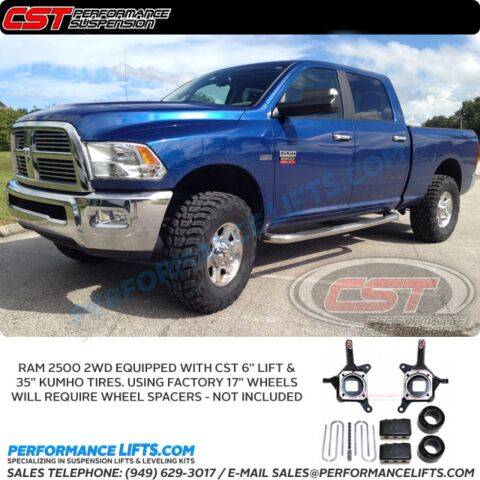

CST Performance Suspension Lift System # CSK-D12-2 is designed for use on 2009-2012 Ram 3500 series 2wd trucks. It will provide 6.0" inches of front suspension lift and 3" inches of rear lift by default. Performance Lifts offers optional front and rear lift height options for truck owners that want a specific stance. By increasing the front suspension ride height up to 6.0" inches the 2wd Ram 3500 trucks start to look a lot more like the 4x4 Ram trucks do. Please note that the rear is lifted less than the front and doing this provides a more level and better looking stance. This lift can clear up to a 315/70/17 tire when mounted on the correct wheel. Factory wheels can be used but they will require a wheel spacer that is NOT included.

Features & Benefits:
The CST # CSK-D12-2 6.0" Suspension Lift is made possible by combining a number of CST products into one suspension system. The CSS-D1-4 3.5" Lift Spindles are hand built from CNC cut steel, MIG welded, and then CNC finish machined to ensure they fit right the first time with no modifications necessary to install. They are covered and protected with a high quality Black Powdercoat finish. The quality of these CST spindles is absolutely top notch! CST 3.5" lift spindle is stronger than the factory piece it replaces. This is one of the few products that we can honestly say will outlast the rest of the truck. This lift package also includes a 2.5" lift coil spring spacer kit. By combining the CST 3.5" Lift Spindles with the CST Coil Spring Spacers you can create a 6.0"  front suspension lift. Performance Lifts offers two different rear lift block heights. The CST 3" Block will provide a very close to level stance when you select the optional 5.5" front suspension lift height. If you prefer that your truck have a slight rake (rear slightly higher) we recommend going with the CST 6" front lift height and 4" rear lift block height option. Why do we offer different front and rear lift height options? Simple... not all Ram 3500 series trucks are the same and not all customers want the same stance. That is why we try to offer you enough options to put together the exact suspension lift package that will work best for you.

Vehicle Fitment:

This CST Suspension Lift is designed for use on 2009, 2010, 2011 and 2012 model year Ram 3500 Heavy Duty trucks built on the 2wd coil spring IFS Chassis. This includes the Mega Cab models. This product will NOT fit any 4x4 Ram models! This product will NOT fit the 2008 and earlier or 2013 and later model years. WILL NOT FIT 2013 MONOBEAM MODELS!

Tire & Wheel Fitment:
CST states that with their 3.5" lift spindle installed (without any additional coil spring or spacer lift) the maximum recommended tire size is 33" x 12.50" on up to a 9" wide wheel. Anything taller or wider is beyond CST recommendation and is left entirely up to the installer. Minor trimming may be required when running this tire size. Running larger 305 or 315 series tires like a 315 / 70 / 17 will require additional lift and/or trimming to prevent rubbing. Maximum recommended wheel back space is 5.00" inches. Factory Ram 17" wheels will not work with this spindle unless a wheel spacer is installed. CST recommends the use of aftermarket wheels when installing this lift spindle.

If you have any questions about this or any other CST Performance Suspension product please click on the "ASK A QUESTION" link located at the top of this page.
