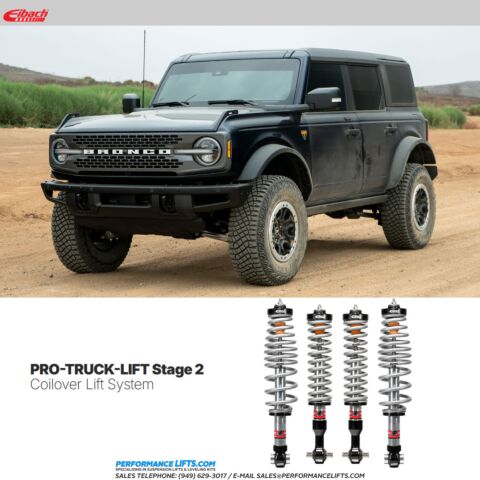

Eibach 2021+ Ford Bronco Pro-Truck Lift Kit # E86-35-056-01-22

Eibach 2021+ Ford Bronco Pro-Truck Lift Kit # E86-35-056-01-22 features linear valving as opposed to digressive valving which boosts comfort and capability off-road while still retaining comfort on the street. The front 2.0 coilovers were developed utilizing Eibach's extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails. This kit was designed for use with Eibach's championship-winning ERO Off-Road Race Springs which maximize the performance of the included Eibach shocks.

Eibach # E86-35-056-01-22 Features:
Anodized 6061-T6 billet aluminum mounting system
ERO off-road race spring equipped and compatible
Monotube design with 46mm pistons
5/8” hardened, nitrocarburized rods
Heavy-duty zinc coating
MAXIMA shock oil
Adjustable threaded spring perch to accommodate increased loads and maximize clearance
Nitrogen charged, gas separator piston design
Cycle tested, heavy-duty bushing system
Individually dyno-tested for matched performance and reliability
Pre-assembled factory direct replacement

Eibach Stage 2 Kit Contents:
QTY 2 - PRO-TRUCK 2.0 COILOVER SHOCK - FRONT
QTY 2 - PRO-TRUCK 2.0 COILOVER SHOCK - REAR
QTY 1 - SPANNER WRENCH

Things to think about...
This coilover system will provide different lift height increases over stock height on different Bronco models. Eibach advertises up to 4" of lift over stock but that's really pushing it in our opinion. We'd expect the maximum height on a Sasquatch (or similar factory "lifted" model) to be closer to a maximum of 3" inches over stock. If you have a non-Sasquatch and want to run the coilovers at the maximum ride height increase set to 4" inches over stock we'd highly recommend new control arms. Ideally you will run the absolute minimum lift height you require to maintain the best ride possible. These coilovers will not ride as nice on or off-road if the coilspring pre-load is max'd out. Less lift = better ride.

Application Information:
This shock system is designed for the fullsize 2021+ Ford Bronco. It will NOT fit the Sport or Raptor editions. If your Bronco has "fancy" shocks that are computer controlled installation of this type of shock will eliminate that which is something you probably don't want to do.

For more precise fitment information please contact us using the Ask A Question located at the very top of this page.
