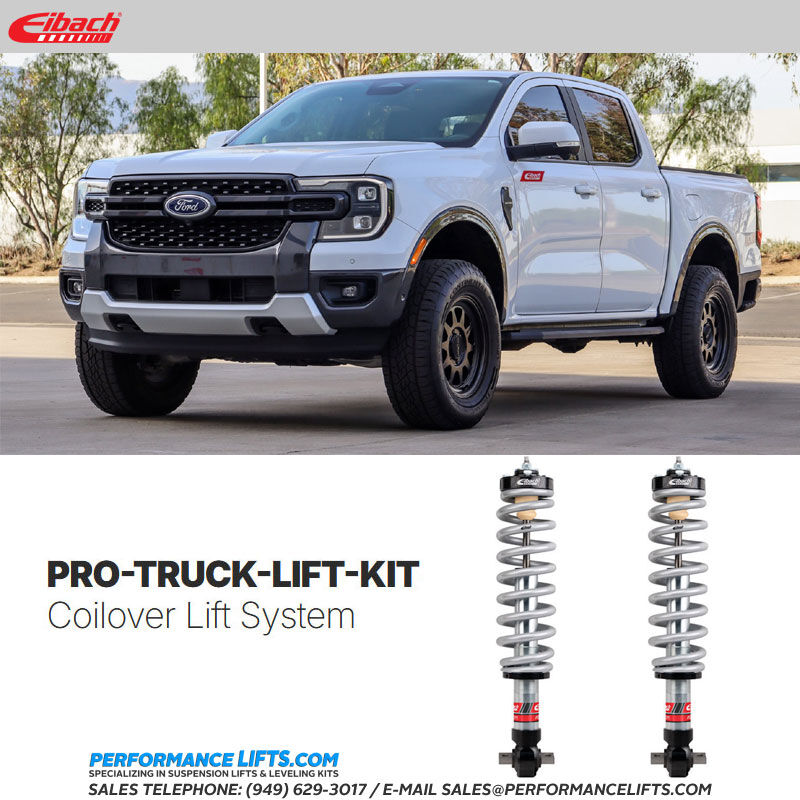

Eibach 2024+ Ford Ranger 2wd Pro-Truck Coilover Kit # E86-35-062-01-20

Eibach 2024+ Ford Ranger 2wd Pro-Truck Coilover Kit # E86-35-062-01-20 is designed for use on 2024 and 2025 model year Ford Ranger 2wd trucks only. Eibach has a separate system designed specifically for the 4x4 models. DO NOT INSTALL THE 2WD KIT ON A 4X4 RANGER! The PRO-TRUCK-LIFT Coilovers feature the ability to fine tune your front lift height with threaded height adjustment. The PRO-TRUCK-COILOVER 2.0's utilize extended travel monotube coilovers and variable force valving which delivers control during on-road transit and compliance for maximum traction on the trails. Designed for use with Eibach's interchangeable championship winning ERO Off-Road Race Springs, this system allows for various combinations to fine tune ride height and load capacity from fully loaded crawlers to factory weight vehicles. Due to weight differences across the Ranger model lineup we are unable to tell you exactly how much lift these coilovers will provide out of the box. But don't worry... they are easily adjusted using the provided spanner wrench!

Eibach # E86-35-062-01-20 Features:

Utilizes ERO Championship proven Off-Road racing springs
Front coilovers allow adjustment of 0" up to 3" (varies by sub-model)
Pre-assembled for direct bolt-on installation, out of the box lift height is set level w/ factory rear
Made by Eibach in the USA
Zinc-coated shock tubes and anodized brackets to protect against corrosion
5/8" hardened, nitrocarburized rods for un-matched materials quality
Billet aluminum spring seats for strength
Sturdy 46mm tubing
Maxima (R) shock oil - because we only select the best

Important Fitment Information:

This Eibach coilover should NOT be installed on any 4x4 Ranger. These coilovers are 2WD SPECIFIC. As of right not Eibach is only recommending installation of this kit on trucks equipped with the 2.3L EcoBoost engines. Additional fitments are expected soon.

This Eibach kit includes a pair of E86-35-062-01-20 front coilovers that arrive fully assembled. To make front coilover pre-load adjustments easier, Eibach also includes an adjustment spanner wrench. All required mounting hardware is included. You will reuse the factory Ford front coilover lower hardware.

For more information on this or any other Eibach product please click on the Ask A Question link located at the very top of this page.
