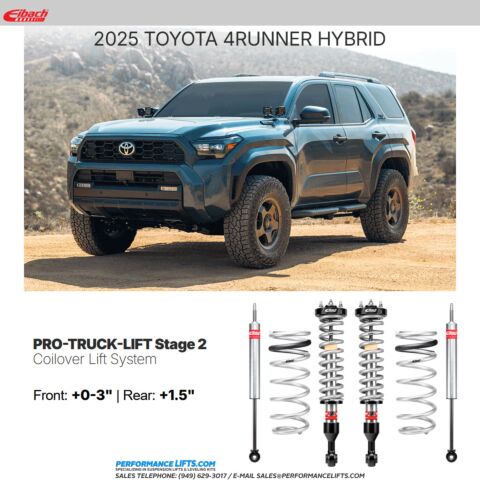

Eibach 2025+ Toyota 4Runner 4x4 Pro-Truck Stage 2 Kit # E86-82-109-01-22

Eibach 2025+ Toyota 4Runner Pro-Truck Coilover Stage 2 Kit # E86-82-109-01-22 is designed for use on 2025 model year Toyota 4Runner 4x4 SUV's equipped with the 2.4L Turbo Hybrid engine. The PRO-TRUCK-LIFT Coilovers feature the ability to fine tune your front lift height with threaded height adjustment. The PRO-TRUCK-COILOVER 2.0's utilize extended travel monotube coilovers and variable force valving which delivers control during on-road transit and compliance for maximum traction on the trails. Designed for use with Eibach's interchangeable championship winning ERO Off-Road Race Springs, this system allows for various combinations to fine tune ride height and load capacity from fully loaded crawlers to factory weight vehicles. Due to weight differences across the 4Runner model lineup we are unable to tell you exactly how much lift these coilovers will provide out of the box. But don't worry... they are easily adjusted using the provided spanner wrench!

Eibach also includes vehicle specific rear Sport Series shock absorbers and matching rear coil springs. Eibach's rear PRO-TRUCK SPORT SHOCK features a mono-tube design that delivers improved control and damping performance on-and-off road. The included Eibach rear shocks have extended travel that are able to accommodate up to the 1.5" additional height the provided coil springs are designed to provide. Rear components are individually Dyno Tested for Matched Performance and Reliability. The Heavy Duty Bushing System is also Cycle Tested. Engineered, Tested and Manufactured by Eibach in the U.S.A. The exact rear lift height may vary depending on exact vehicle equipment packages and weight distributions.

Eibach # E86-82-109-01-22 Features:

• Utilizes ERO Championship proven Off-Road racing springs
• Front coilovers allow adjustment from stock up to 3"
• Pre-assembled for direct bolt-on installation, out of the box lift height is set level with rear
• Eibach rear shocks have extended travel able to accommodate up to the height listed.
• Rear mono-tube shock design delivers improved control and damping performance on-and-off road.
• Made by Eibach in the USA
• Zinc-coated shock tubes and anodized brackets to protect against corrosion
• 5/8" hardened, nitrocarburized rods for un-matched materials quality
• Billet aluminum spring seats for strength
• Sturdy 46mm tubing
• Maxima (R) shock oil - because we only select the best

Important Fitment Information:

This Eibach system is currently only designed for use on 2.4L Turbo Hybrid 4WD N500 models. Cannot be installed on any 4Runner equipped with Adaptive Variable Suspension (AVS). NOT for use on vehicles with Load-Leveling Rear Height Control Air Suspension.

This Eibach Pro-Truck Stage 2 Kit kit includes a pair of E86-82-109-01-20 front coilovers that arrive fully assembled, Eibach Sport Series rear shocks # E60-82-109-01-01, Eibach rear coil springs # E30-82-109-02-02 and to make adjustment easier, Eibach also includes 1 x 6mm adjustment spanner wrench. All required mounting hardware is included. You will reuse the factory Toyota front coilover lower hardware and rear shock upper and lower hardware.
