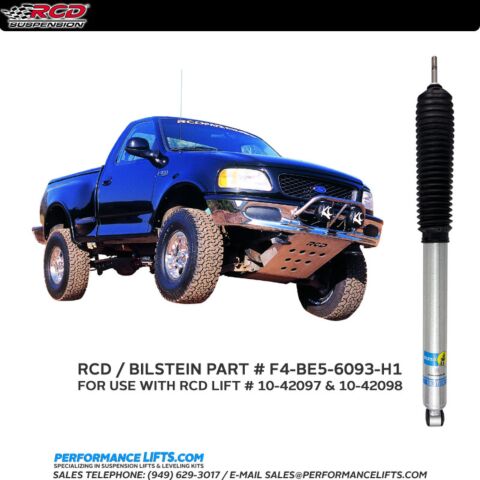

RCD / Bilstein 1997-2003 Ford F150 4x4 Rear Shock Absorber # F4-BE5-6093-H1
- Buy 2 for $105.00 each and save 5%
Bilstein F4-BE5-6093-H1 Replaced by Bilstein 24-185417
When It Comes To Performance Shock Absorbers nothing beats Bilstein. This Bilstein MonoTube Series shock absorber offers traditional Bilstein technology but for use with lifted trucks. This Bilstein part number # F4-BE5-6093-H1 shock absorber is designed for use with 1997-2003 Ford F150 4x4 trucks equipped with the RCD 4-5" Suspension Lift. This part number will fit the REAR suspension using the O.E.M. mounting configurations. Bilstein shocks feature a superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Bilstein's patented Digressive self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Keep reading below for more information...
| Brand | RCD |
|---|---|
| Manufacturer | RCD Suspension |
| Part Number | F4-BE5-6093-H1 |
| MPN | F4-BE5-6093-H1 |
| Vehicle Year | 2003, 2002, 2001, 2000, 1999, 1998, 1997 |
| Vehicle Make | Ford |
| Vehicle Model | Expedition, F150 |
| Drive Type | 4-Wheel Drive |
| Made In USA | No |
| Compressed Length | 16.30" |
| Extended Length | 27.30" |
| Shock Travel | 11.00" |
| Body Diameter | 46mm |
RCD / Bilstein 5100 Part Number F4-BE5-6093-H1. This shock is designed specifically for use on 1997-2003 Ford F150 4x4 trucks equipped with the RCD 4-5" Suspension Lift System. Please note that this shock is sold individually. Fits RCD Kit # 10-42097 and 10-42098.
Bilstein F4-BE5-6093-H1 Specs:
Collapsed Length: 16.30"Extended Length: 27.30"
Travel Length: 11.00"
Lower Mount: Eye
Upper Mount: Stem
Shaft Diameter: 14mm
Reservoir: No
Body Design: 46mm ID smooth body
Internal Design: Mono tube
Boot Included: Yes
If you are unsure if this shock is correct for your application we suggest that you click on the Ask A Question link located at the very top of this page before placing an order.
| Brand | RCD |
|---|---|
| Manufacturer | RCD Suspension |
| Part Number | F4-BE5-6093-H1 |
| MPN | F4-BE5-6093-H1 |
| Vehicle Year | 2003, 2002, 2001, 2000, 1999, 1998, 1997 |
| Vehicle Make | Ford |
| Vehicle Model | Expedition, F150 |
| Drive Type | 4-Wheel Drive |
| Made In USA | No |
| Compressed Length | 16.30" |
| Extended Length | 27.30" |
| Shock Travel | 11.00" |
| Body Diameter | 46mm |
