Total Chaos 2008+ Toyota Landcruiser 200 Upper Control Arm # 87504

This Total Chaos # 87504 Upper Control Arm kit is designed for use on 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 and 2018 Toyota Landcruiser 200 series vehicles. The benefit of replacing the factory Upper Arm is to increase on highway and off road handling and overall performance without requiring modifications to the vehicle. The TC 87504 Upper Control Arm system is 100% bolt on and maintains all factory mounting locations.

Please note, the Total Chaos 87504 Landcruiser 200 Upper Control Arm kit does not provide lift by itself. The Total Chaos Upper Control Arm Kit is designed to work in conjunction with other lift products such as adjustable light height coilovers, spacer lifts, etc. This item will fit all 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 and 2018 model year Toyota Landcruiser 200 Series vehicles.

The designers at Total Chaos began the R&D process with the requirement that they create a bolt on performance suspension package that would compliment and improve upon the factory strengths. When aftermarket lift kits are installed on the 2008-2018 Tundra the OEM suspension design loses caster. TOTAL CHAOS has developed a replacement upper control arm system that is intended to replace the factory caster that is lost when an aftermarket lift is installed. When you alter the factory caster the vehicle will lose on and off-road handling & performance. Too little caster results in a tendency for the truck to wander when driving down the road. Installing a set of TOTAL CHAOS UCA's can replace up to 3 degrees of lost caster as well as increase wheel travel with some brands of aftermarket extended travel coil over shocks.

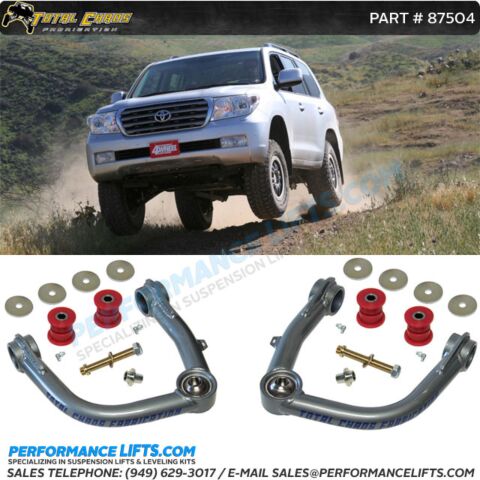

A tapered spindle adapter is included to replace the factory ball joint with a 1" Uniball. Total Chaos upper control arms feature 4130 Chromoly construction and include greasable Zerk fittings on all each arm pivot. Incorporating a Zerk fitting on each pivot allows you to lubricate the inner sleeves and urethane bushings with the arms attached to the vehicle. An ABS relocation bracket is also included that replicates the factory line routing bracket located on the factory Toyota upper arm. The complete Total Chaos Upper Control Arm kit includes 1" Teflon lined Uniballs & stainless high misalignment spacers, installation hardware, urethane bushings, inner sleeves, end washers and installation instructions.

For more information on this or any other Total Chaos Fabrication product please click on the "Ask A Question" link located at the very top of this page.
