Fabtech 2019+ Ram 1500 2wd 6" Basic Lift Kit # K3093

Fabtech 2019+ Ram 1500 2wd Basic Series 6" Lift System # K3093 is designed to fit 2019 and 2020 model year Ram 1500 trucks. With an additional 6" inches of vehicle suspension ride height you can pretty easily clear 35" tires and with some minor trimming you can run up to 37" tires. This Fabtech system is designed to retain the factory on and off-road capability of your Ram by retaining the front shock and spring assembly and replacing the rear shocks with a set of Fabtech Performance Series (white can) shock absorbers.

Vehicle Fitment Information:
For coil spring rear suspension trucks only - WILL NOT FIT AIR RIDE MODELS! Fabtech designed and built this 6" lift using the standard height Ram 1500 2wd truck. Due to differences between the 2wd and 4x4 trucks this Fabtech lift will NOT fit any 4x4 model Ram 1500. This lift will NOT fit the 2019 Classic edition Ram 1500 trucks built on the older chassis.

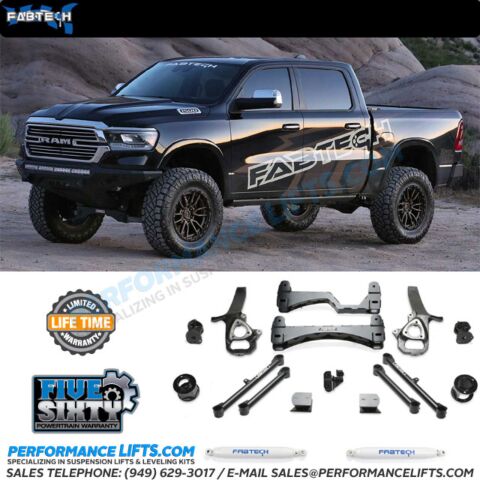

Fabtech K3093 Contents:
1 x FTS23230 = Component Box 1
1 x FTS23231 = Component Box 2
1 x FTS23038 = Component Box 3
2 x FTS7348 = Rear Performance Series Shocks

Kit Features:
Crossmembers: 1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. Rear lift height is 4.5" inches.

Steering Knuckles: Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.

Sway Bar Brackets: Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.

Rear Coil Spring Spacers: Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.

Rear Track Bar Bracket: The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.

Tire & Wheel Information:
The OEM wheel and tires are NOT compatible with this Fabtech 6" Lift. You must use aftermarket 20" or larger diameter wheels. Will NOT fit vehicles equipped with factory OEM 22" wheels and the heavy duty "XL" bearing option.

Recommended Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
Recommended Tire Size – 37/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
