ICON 2024+ Toyota Tacoma Billet Upper Control Arm Kit # 58552DJ

ICON Vehicle Dynamics Billet Aluminum Upper Control Arms with Delta Joint Pro # 58552DJ. This item fits all 2024 and newer model year Toyota Tacoma Trucks built on the 6-lug chassis. ICON engineered these arms to allow for adjustment while installed on the vehicle. The additional strength and corrected alignment geometry these arms offer are ideal for installation both stock and lifted Toyota Tacoma trucks. ICON replaces the weak factory ball joint with Delta Joint Pro. These arms are a 100% bolt-on installation. The ICON Delta Joint helps to increase the upper arms misalignment ability which allows for smooth and clean wheel travel. The OEM ball-joints will limit suspension travel when they bind. When used in conjunction with the ICON 2.5" V.S. Series Performance Coil Overs, these Tubular Uniball arms can add significant gains in wheel travel and on or off road performance.

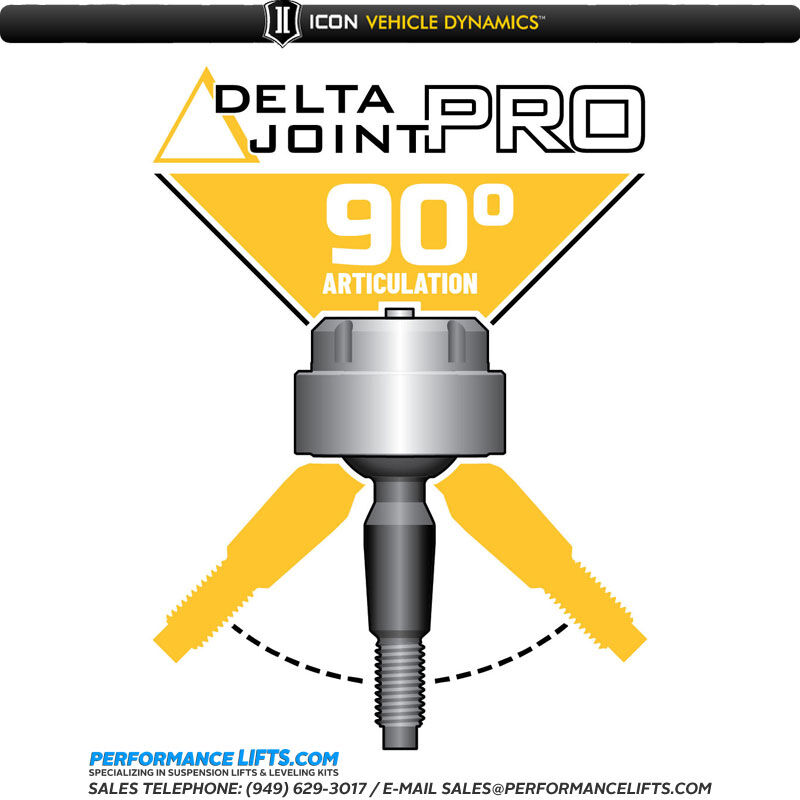

The all-new Delta Joint PRO provides a host of durability and performance improvements compared to the standard Delta Joint, including up to 90° of free articulation to maximize suspension travel without bind. It's also larger and fully rebuildable. The Delta Joint PRO has a grease fitting that is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving a multi-stage semi-gloss black powder coat finish. This Control Arm Kit includes all components and hardware necessary for a complete install.

ICON # 58552DJ Upper Arm Features:

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3" of lift
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap

Tech Info:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• TECH NOTE: Compatible with 2024 Tacoma equipped with 0 - 3" of front lift over stock

The ICON 58552DJ Upper Control Arm Kit includes one pair of Billet Aluminum Upper Control Arms equipped with Delta Joint Pro, a complete set of FK rod ends for the pivots and all necessary installation hardware. Please note that you will re-use your existing Toyota control arm pivot bolts when installing the ICON control arms.

If you have any questions about this or any other ICON Vehicle Dynamics product please click on the Ask A Question link located at the very top of this page.
